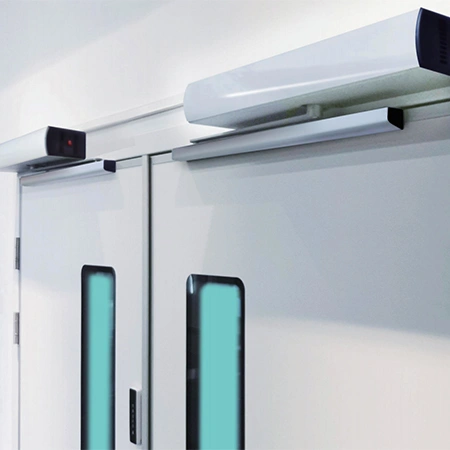

Electromechanical Door Closer

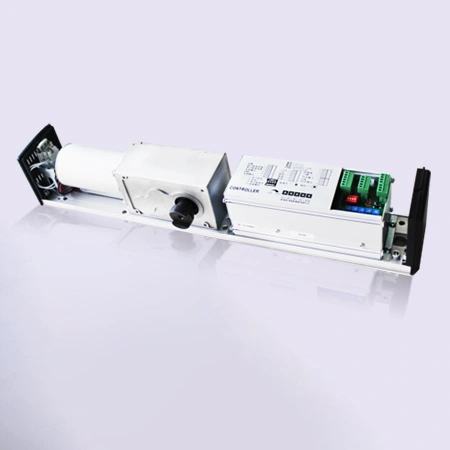

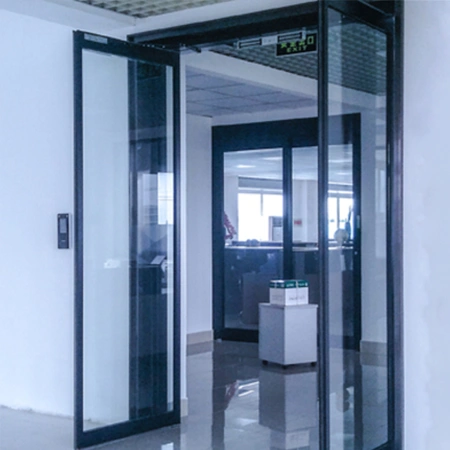

Electromechanical door closers provide automatic opening and closing for swing doors used in commercial, public, industrial, and residential buildings. As the core power unit of an automatic swing door system, the operator plays a direct role in the door's operational stability, safety performance, and long-term service life. Suitable for office building entrance doors, shopping centre glass swing doors, hospital accessible doors, factory and warehouse entrances, villa courtyard gates, and other automated access applications, the entrance system helps improve accessibility, convenience, and passage capacity.
To accommodate different project requirements, the operator can be configured with a variety of activation sensors, access control accessories, backup power supplies, and other auxiliary devices.
SW100 Electromechanical Door Closer
| Dimensions (L × W × H) | 475×81×98 mm |
| Weight | 5.5 kg |
| Operating Voltage (Input) | 100–240 V AC |
| Control Voltage (Output) | 110 V AC |
| Opening Speed | 45°/s |
| Closing Speed | 45°/s |
| Ambient Temperature | -20°C to +50°C |
| Hold-Open Time | 0–20 s (adjustable) |
| IP Rating | IP21 |
SW150 Electromechanical Door Closer
| Max. Leaf Weight | 150 kg |
| Power Supply | 100–240 V AC |
| Opening Time | 3–7 s / 90° |
| Hold-Open Time | 1–30 s |
| Ambient Temperature | -20°C to +55°C |
| IP Rating | IP12D |
| Weight | 6.8 kg |
| Dimensions (L × W × H) | 540 × 95 × 82 mm |
SW200N3R Electromechanical Door Closer
| Power Supply | 220 V AC ± 10%, 50/60 Hz |
| Max. Power Consumption | 100 W |
| Drive Unit | 24 V DC, Spring Return |
| Anti-Crush Safety Device | Standard |
| Opening Angle | 80°– 100° |
| Opening Time | 3–7 s (adjustable) |
| Closing Time | 3–7 s (adjustable) |
| Hold-Open Time | 0.5–30 s (adjustable) |
| Arm Type Configuration | Pull Arm/ Push Arm |
| Ambient Temperature | -20°C to +45°C |
SW500 Electromechanical Door Closer
| Dimensions (W × H × D) | 610 × 90 × 128 mm |
| Power Supply | 220 V AC (110 V Optional) |
| Power Consumption | Standby: 13 W, Rated: 87 W |
| Max. Torque | 50 N·m |
| Opening Angle | 45°–105°(adjustable) |
| Hold-Open Time | 0–30 s (adjustable) |
| Opening Speed | 3–9 s (adjustable) |
| Closing Speed | 3–9 s (adjustable) |
| Acoustic Noise Level | ≤ 18 dB @1 m |
| Max. leaf Weight | 350 kg |
ISO 9001, ISO 14001, SW100 Automatic Swing Door System Test Report, SW150 Automatic Swing Door System Test Report
