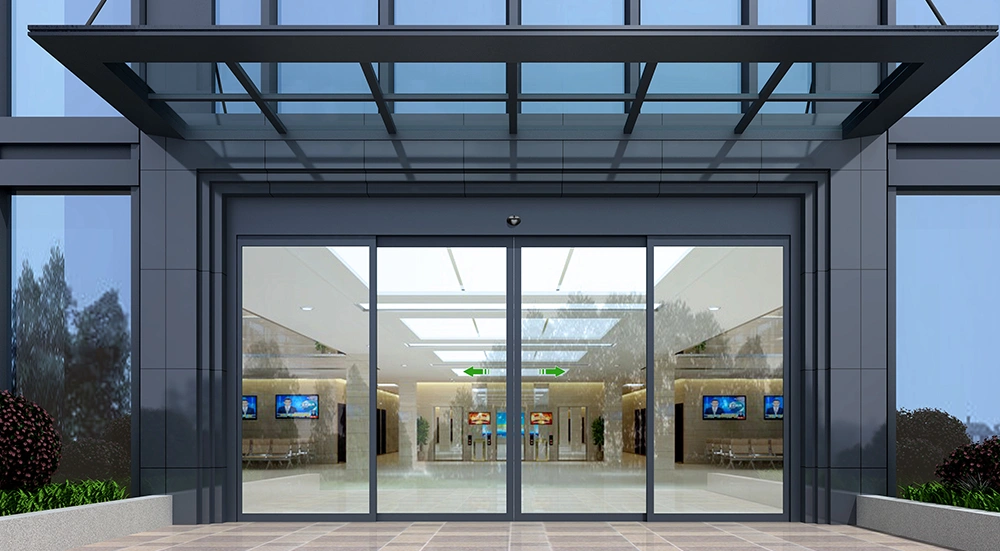

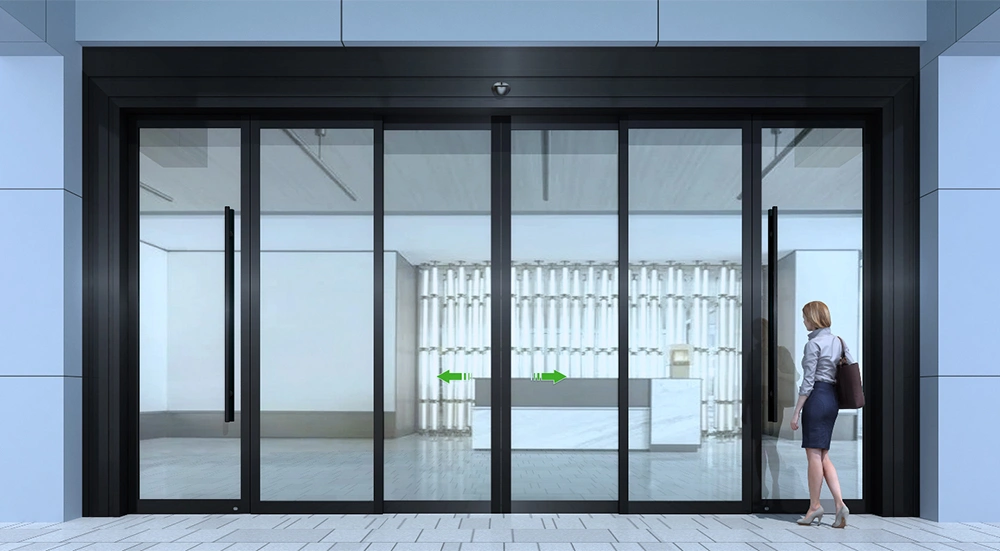

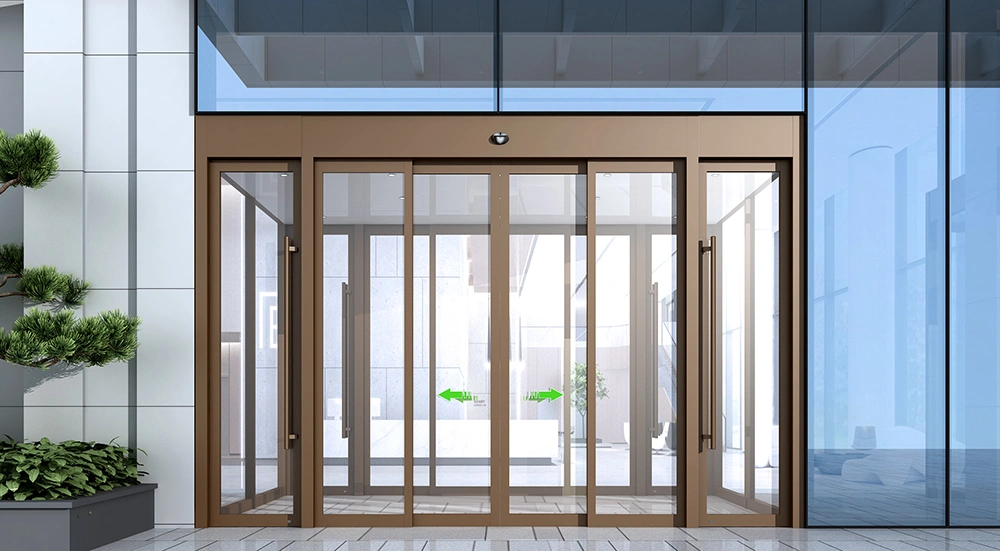

Automatic Sliding Door
Hands-free access and efficient pedestrian flow have made automatic sliding doors one of the most widely used entrance solutions for modern commercial buildings. The sliding doors combine intelligent sensor activation, smooth motorized operation, and integrated safety protection to create a convenient and reliable entrance system for office buildings, business centres, clubs, retail spaces, and other public facilities.
Different buildings have different entrance requirements, which is why our automatic sliding doors are available in single-slide, bi-parting, and telescopic configurations. The automatic opening and closing function helps improve pedestrian flow and everyday convenience, particularly in busy commercial environments. Framed and frameless options give architects and property owners greater design flexibility, making it easier to achieve the desired visual style without compromising functionality. Aluminum alloy frames and stainless steel finishes are available to match different project aesthetics, with tempered clear glass or frosted glass options providing the desired balance of visibility and privacy. Equipped with intelligent sensing technology and anti-pinch safety protection, PAD Automatic Sliding Doors help ensure smooth and secure access throughout the day.
- Door Configuration: Single-slide, bi-parting, telescopic single-slide, or telescopic bi-parting.
- Glass Options: Standard glass or ultra-clear glass.
- Surface Finish: Fluorocarbon coating, stainless steel cladding, or copper cladding.
(Frame dimensions, glass specifications, frame colors, access control accessories, and other special requirements can be customized according to project needs.)
Technical Specifications
- Load Capacity 50–3,000 kg
- Door Leaf Width 700–2,500 mm
- Opening Speed 150–550 mm/s (adjustable)
- Closing Speed 150–550 mm/s (adjustable)
- Motor Type 24 V DC, 55–370 W
- Hold-Open Time 0–20 s (adjustable)
- Power Supply 90–240 V AC, 50/60 Hz
- Ambient Temperature −10°C to ＋70°C
- Efficient pedestrian flow: The sliding door design creates a wide opening without requiring additional swing space, making it ideal for shopping centres, airports, railway stations, and other high-traffic environments where smooth movement is essential.
- Clean and modern appearance: Large glass panels, concealed tracks, and hidden drive components create a streamlined entrance that complements a wide range of architectural styles and enhances the overall appearance of the building.
- Advanced safety and intelligent control: Multiple anti-pinch protection systems and intelligent sensors help improve user safety during operation. The entrance system can also be integrated with access control, building intercom, and fire alarm systems, automatically opening during emergencies to support evacuation procedures.
- Adaptable to different environments: Outdoor models feature fully enclosed designs that help protect against wind, rain, and dust, while indoor models focus on quiet operation and energy efficiency for everyday comfort.
- Suitable for diverse applications: From transparent glass doors for shopping centres and banks, to heavy-duty industrial models for factories and logistics facilities, and hermetic doors for operating theatres and ICUs, the system can be configured to meet the requirements of a wide variety of commercial, industrial, and healthcare environments.
- 1. Automatic door operator and sensor
- 2. Safety light curtain

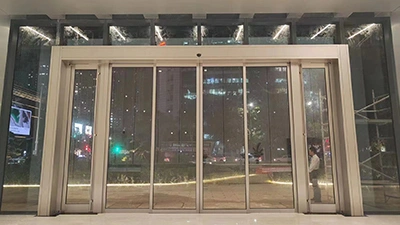

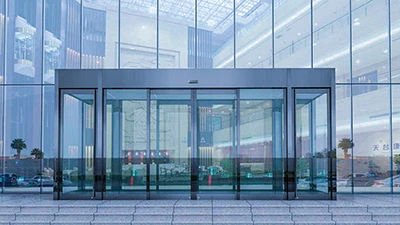

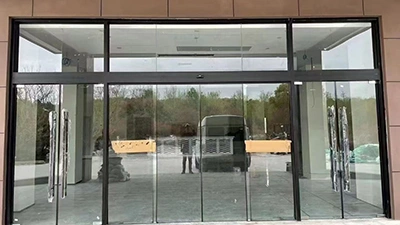

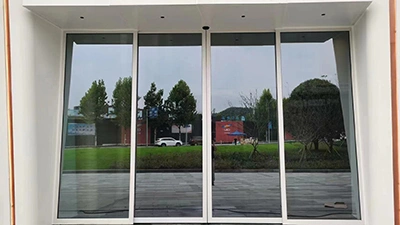

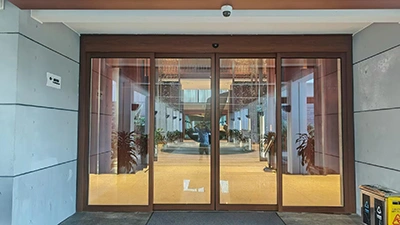

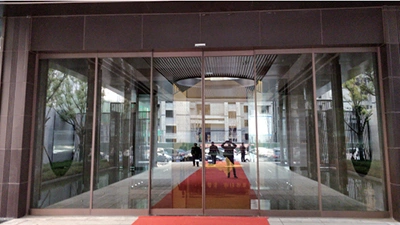

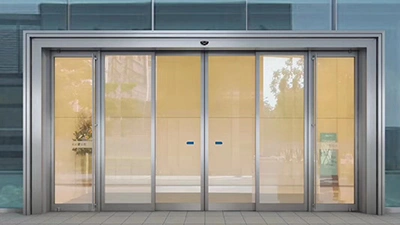

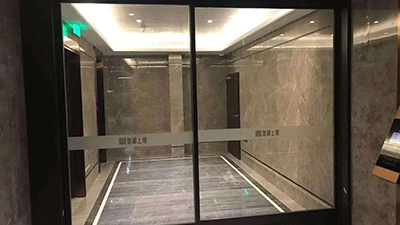

Automatic sliding doors are widely used in retail stores, office interiors, restroom entrances, shopping centre entrances, office building access points, hospital corridors, exhibition centres, airport terminals, stadiums, hotels, supermarkets, residential communities, building façade entrances, and garage entrances.
