All-Glass Revolving Door
- Transparent Design with a Clean Architectural Look
- Made for Modern Glass Façade Buildings
- All-Glass Revolving Doors for Light, Open Entrances

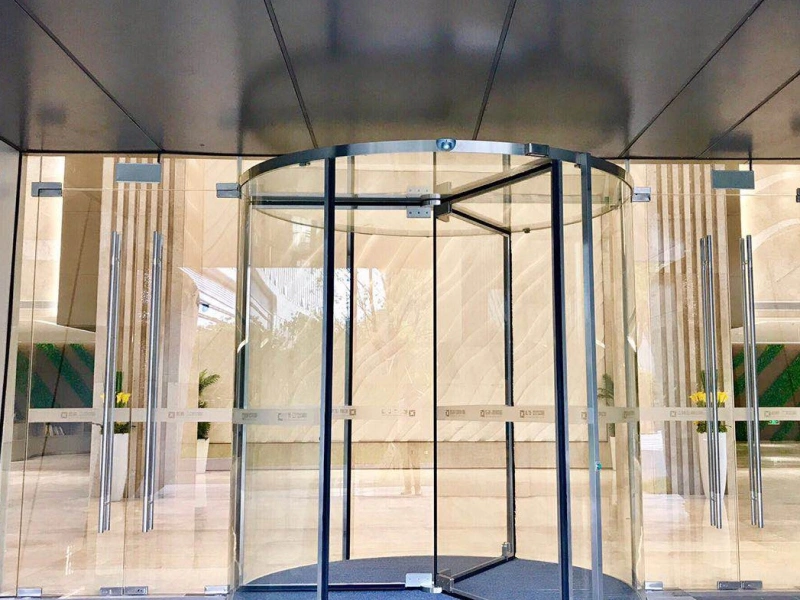

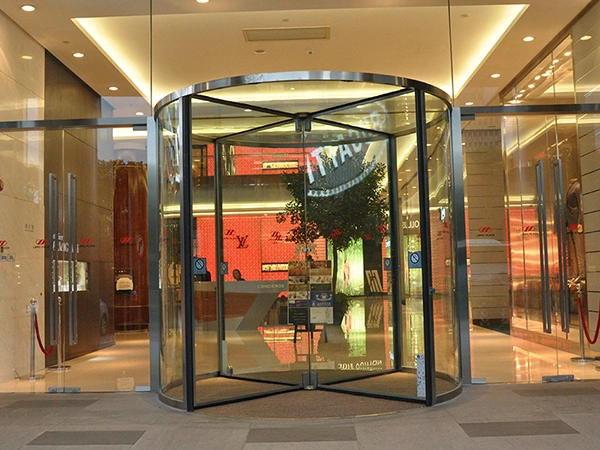

All-glass revolving doors use strong, transparent laminated glass to reduce the need for heavy frame components and create a lighter, more open entrance. The slim glass door leaves and minimal frame create a clean, transparent look that complements modern glass façades while remaining suitable for entrances in buildings with more classical architectural styles. Flexible configurations and optional top LED lighting make all-glass revolving doors suitable for medium-traffic entrances in hotels, offices, and other commercial or public buildings.
Customization Options
- Glass Options: Standard or ultra-clear glass
- Surface Finish: Fluorocarbon coating, stainless steel cladding, or copper cladding
- UPS Backup Power: Optional
Revolving doors and cylindrical portals can be customized to the entrance layout, including the door size, finish, color, and glass specifications. If the project has special requirements, our team can review the site conditions and suggest a configuration that fits the space and daily access needs.
Customization Process
- 01
Customer provides the project information
- 02
Design proposal prepared within 24 hours
- 03
Drawing confirmation
- 04
Product sample provided and confirmed if needed
- 05
Production takes around 20–30 days
- 06
Finished revolving door delivered to the port within 1–2 hours
- 07
Customer receives the goods
- 08
After-sales support begins
To ensure safe, smooth, and adaptable operation, the revolving doors include several key functions:
The frame is made with aluminum alloy profiles that meet the national-standard 6063T5 and with a load-bearing column structure, which provides good strength and stable operation.
The drive system has a 220 V AC variable-frequency motor with 180 W output, so the revolving door is capable of adjusting smoothly from 0 to 5 rpm according to traffic needs. Its brushless, energy-saving design supports long-term operation, with a service life of up to 15 years.
An imported digital PLC control system supports both automatic and manual operation. Power consumption is 75 W in standby mode and 150 W during operation, with total power ranging from 220 W to 400 W.
The revolving door can operate in temperatures from -30 °C to +50 °C. Door weight ranges from 600 kg to 1000 kg, depending on the diameter and height.
National-standard 6063T5 aluminum alloy profiles form a load-bearing frame for stable daily operation, while the slim structure keeps the all-glass revolving door clear and visually open.
- Drive Motor: 220 V AC
- Drive Motor Power: 180 W
- Opening Speed: 0–5 rpm
- Motor Type: Brushless and energy-saving, designed for long-term reliability with a service life of up to 15 years
- PLC Control: Imported digital PLC system
- Operation Modes: Supports both automatic and manual operation
- Power Consumption (Standby): 75 W
- Power Consumption (Operating): 150 W
- Total Power: 220–400 W
- Ambient Temperature: -30 °C to +50 °C
- Door Weight: 600–1000 kg (depending on dimensions)

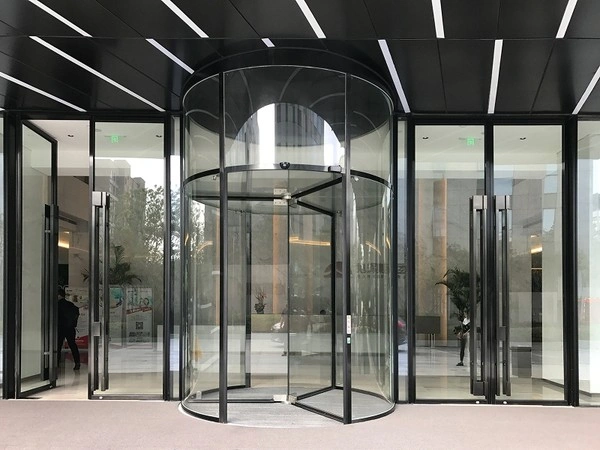

Transparent tempered glass, combined with a finely finished stainless steel or aluminum alloy frame, creates a clear view through the entrance without making the doorway feel blocked. The 360° circular layout is perfect for hotels, luxury retail stores, high-end office buildings, and other spaces that need a clean, polished entrance.
Transparent glass leaves keep the passage open and easy to follow as people enter and exit. Three-wing all-glass revolving doors provide more space between the leaves, while four-wing models rotate more smoothly and support higher daily traffic.
All-glass revolving door are made with automotive-grade tempered glass to ensure impact resistance up to five times higher than standard glass, and safety film can be added for extra protection. Corrosion-resistant hardware also helps the revolving door handle frequent use in hotels, shopping malls, and other busy entrances while reducing maintenance needs.
Hidden infrared sensors equipped in the revolving doors monitor people and obstacles around the wings/leaves without affecting the clean appearance of the entrance. If a person or object blocks the door path, the revolving door stops automatically. Users or staff can also press the emergency stop button to stop operation immediately when needed.
LED light strips at the top of the revolving door add a softer look at night, with options such as gradient or breathing light effects. Frame colors and dimensions can be adjusted according to the building façade to keep the entrance design clean and consistent.
Safety sensors are installed at the entrance, exit, and door leaves to match the layout and traffic of each entrance.
Airbag-type sensors on the entrance and exit columns detect contact and reduce the risk of collisions in busy areas.
Infrared sensors under the canopy monitor spaces near the moving door leaves to prevent pinching accidents.
Airbag-type sensors at the bottom of the door leaves detect obstacles and stop the door immediately to avoid strong impacts.
Emergency stop buttons on the columns allow users or staff to halt the door instantly when necessary.
Disabled access buttons slow the door leaves, which is suitable for elderly users, people with reduced mobility, or anyone who needs more time to pass through.
The door structure helps block wind, dust, noise, and heat transfer, improving comfort inside the building near the entrance.
Positioning and locking functions allow the door to stop in a specific position and secure the entrance during non-operating hours or special access conditions.
Adjustable speed lets the door operate smoothly according to pedestrian flow and entrance requirements.

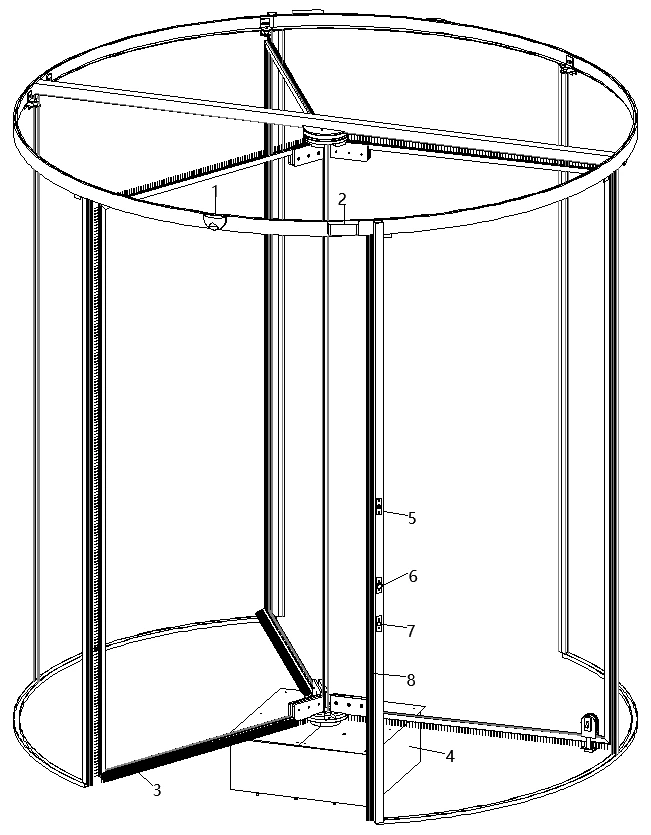

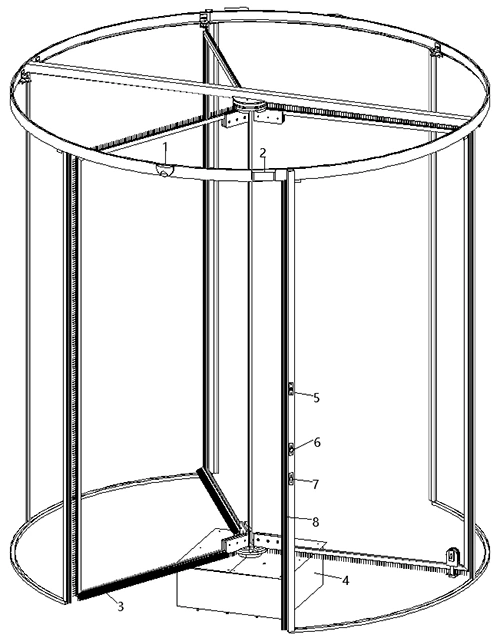

- 01
Motion Sensor
- 02
Position Anti-Pinch Sensor
- 03
Door Leaf Anti-Collision Rubber Strip
- 04
Control Box
- 05
Program Switch
- 06
Emergency Stop Button
- 07
Disabled Access Button
- 08
Column Anti-Collision Rubber Strip
PARD-SJ3000A/PARD-SJ4000A Three/Four-Wing All-Glass Automatic Revolving Door
Dimensions (mm)
| Internal Diameter | External Diameter | Clear Passage Height | Slimline Canopy Height | Opening Width(3000A) | Opening Width(4000A) |
| 2,200 | 2,283 | 2,200–4,000 | 70 | 995 | 1,476 |
| 2,400 | 2,483 | 2,200–4,000 | 70 | 1,095 | 1,617 |
| 2,600 | 2,683 | 2,200–4,000 | 70 | 1,195 | 1,758 |
| 2,800 | 2,883 | 2,200–4,000 | 70 | 1,295 | 1,900 |
| 3,000 | 3,083 | 2,200–4,000 | 70 | 1,395 | 2,041 |
| 3,200 | 3,283 | 2,200–4,000 | 70 | 1,495 | 2,183 |
| 3,400 | 3,483 | 2,200–3,800 | 70 | 1,595 | 2,324 |
| 3,600 | 3,683 | 2,200–3,600 | 70 | 1,695 | 2,466 |
| 3,800 | 3,883 | 2,200–3,400 | 70 | 1,795 | 2,607 |
| 4,000 | 4,083 | 2,200–3,000 | 70 | 1,895 | 2,748 |
PARD-SJ3000B/PARD-SJ4000B Three/Four-Wing All-Glass Automatic Revolving Door
Dimensions (mm)
| Internal Diameter | External Diameter | Clear Passage Height | Slimline Canopy Height | Opening Width (3000B) | Opening Width (4000B) |
| 2,200 | 2,246 | 2,200–4,000 | 70 | 925 | 1,497 |
| 2,400 | 2,446 | 2,200–4,000 | 70 | 1,125 | 1,638 |
| 2,600 | 2,646 | 2,200–4,000 | 70 | 1,225 | 1,779 |
| 2,800 | 2,846 | 2,200–4,000 | 70 | 1,325 | 1,921 |
| 3,000 | 3,046 | 2,200–4,000 | 70 | 1,425 | 2,062 |
| 3,200 | 3,246 | 2,200–4,000 | 70 | 1,525 | 2,204 |
| 3,400 | 3,446 | 2,200–3,800 | 70 | 1,625 | 2,345 |
| 3,600 | 3,646 | 2,200–3,600 | 70 | 1,725 | 2,418 |
| 3,800 | 3,846 | 2,200–3,400 | 70 | 1,825 | 2,628 |
| 4,000 | 4,046 | 2,200–3,000 | 70 | 1,925 | 2,769 |

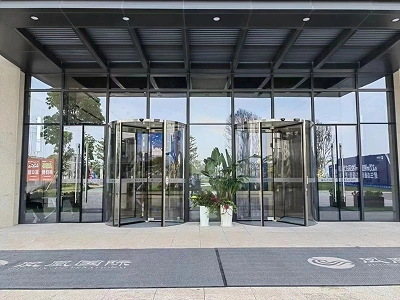

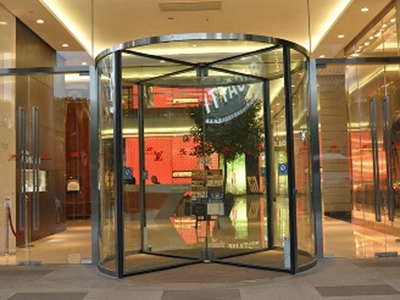

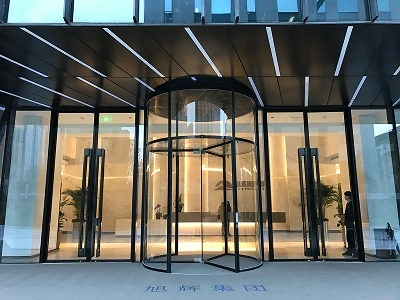

All-glass revolving doors are a perfect for entrances that need a bright, open look and smooth daily access, such as:
- Star-rated and luxury hotels
- High-end shopping malls
- Shopping centers and supermarkets
- Business clubs and hospitality venues
- Office buildings and corporate buildings
- Banks
- Large commercial buildings
Our all-glass revolving doors come with CE, ISO 9001, and ISO 14001 certifications, with related test reports available for project review.
