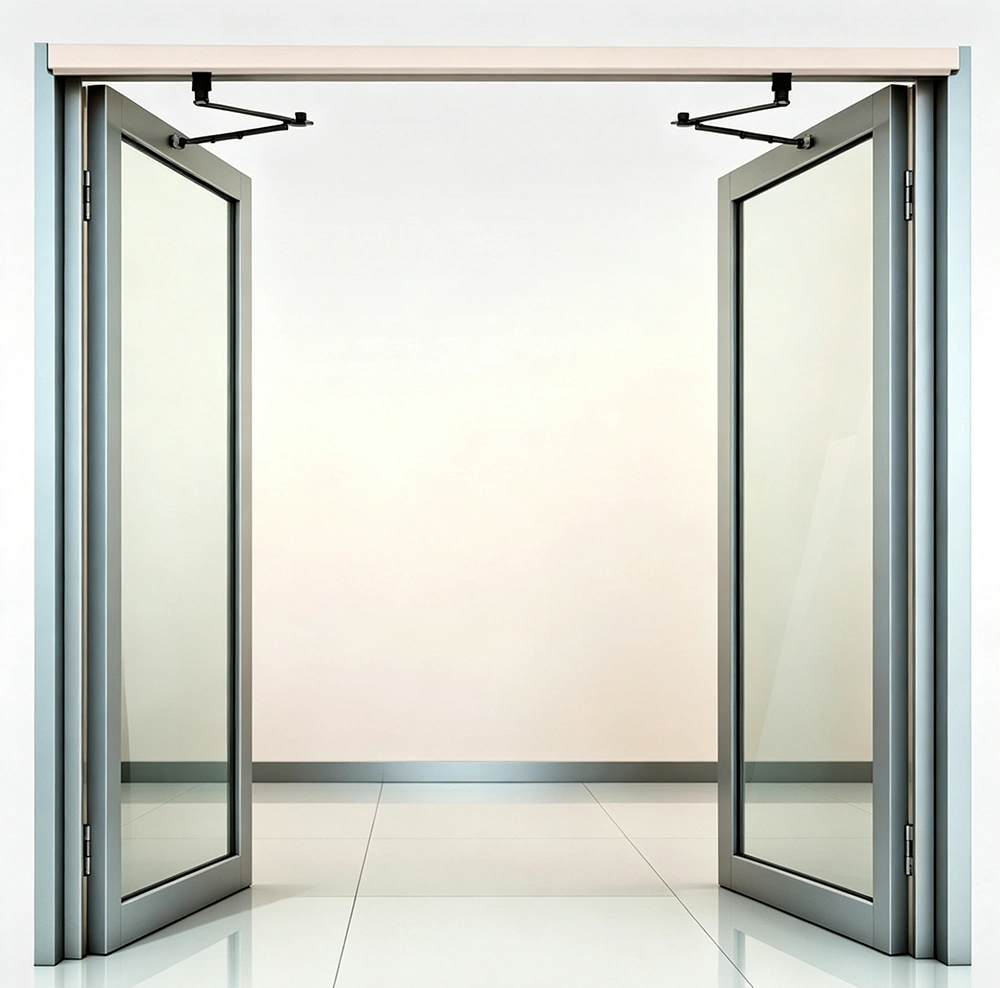

Automatic Swing Doors
Automatic swing doors provide smooth, reliable operation for commercial entrances, offices, shopping centres, and public buildings. The entrance system delivers strong sealing performance, barrier-free accessibility, and flexible installation options.
The doors feature a clean, rectangular design. Single-leaf doors offer straight, elegant lines, while double-leaf configurations create a symmetrical, balanced entrance. The doors adapt seamlessly to both narrow corridors and wide entrances, integrating harmoniously with building architecture while enhancing the visual appeal of the entryway. High-quality materials ensure both durability and premium appearance. Frames are made from 6063-T5 aluminum alloy with anodized or fluorocarbon-painted finishes in matte or metallic tones, providing a sophisticated texture. Combined with high-definition tempered glass panels, the doors maintain excellent transparency and light transmission, These automatic swing doors are ideal for modern office buildings, retail spaces, and other upscale commercial environments.
Customization Options
- Automatic Operator Installation: Surface-mounted or concealed installation
- Glass Options: Standard glass or ultra-clear glass
- Surface Finish: Fluorocarbon coating, stainless steel cladding, or copper cladding
- Backup Power Supply: Optional
(Customizable options include dimensions, surface finish, color, and glass specifications. For additional project requirements, please contact our experts for further consultation.)
Customization Process
- 01
Client provides project details
- 02
Design proposal prepared within 24 hours
- 03
Drawings confirmation
- 04
Product sample provided and confirmed if required
- 05
Production completed within 14–20 days
- 06
Finished swing door delivered to the port within 1–2 hours
- 07
Client receives the goods
- 08
After-sales support begins
- Dimensions (W × H) 600–1200 mm × 2100–3,500 mm
- Input Voltage 220 V AC (110 V Optional)
- Max. Output Torque 50 N·m
- Opening Angle 45°to 105°(adjustable)
- Hold-Open Time 0–30 s (adjustable)
- Opening Speed 300-900 mm/s (adjustable)
- Closing Speed 00-900 mm/s (adjustable)
- Acoustic Noise Level ≤ 18 dB(A)@1 m
- Load Capacity 40–500 kg
The swing door can open and close automatically based on preset programs or sensor signals. This function eliminates the need for manual operation and improves the efficiency of pedestrian and goods movement through the entrance.
Equipped with anti-pinch safety devices, the door stops or reverses immediately if it encounters an obstacle while opening or closing.
The door opens automatically to 90° without manual effort, facilitating passage for trolleys, children, or individuals with limited mobility. When paired with a foot-activated switch, it also meets hygiene requirements in hospitals and other healthcare environments.
Parameters such as opening force, speed, opening angle, and pause time can be programmed according to door size and usage requirements. It allows the door system to adapt to different application scenarios.

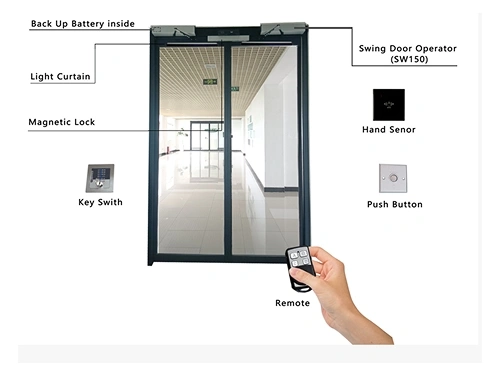

- 01
Backup battery (internal)
- 02
Light curtain
- 03
Magnetic lock
- 04
Swing door operator
- 05
Key switch

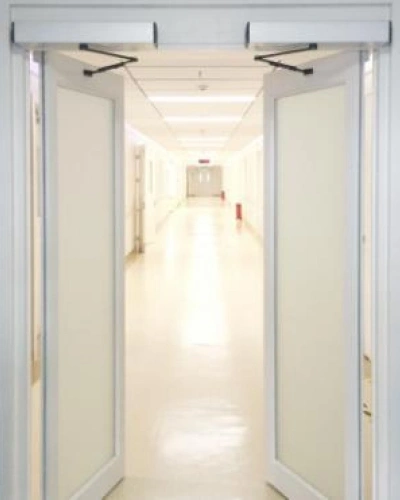

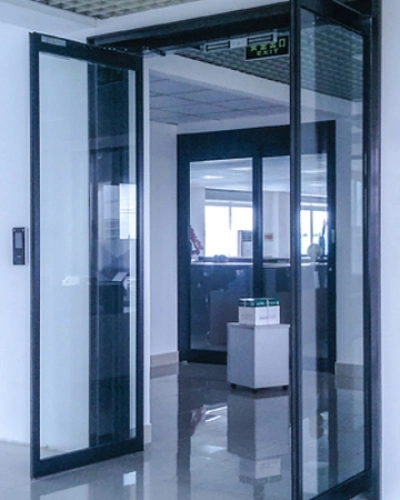

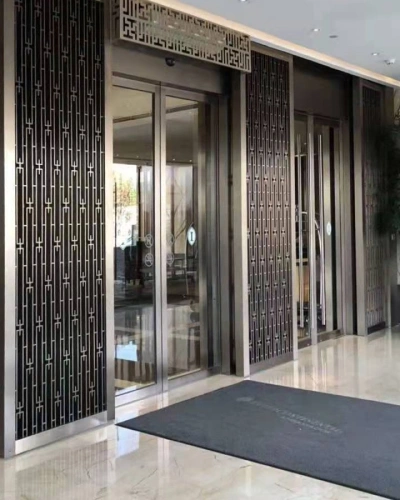

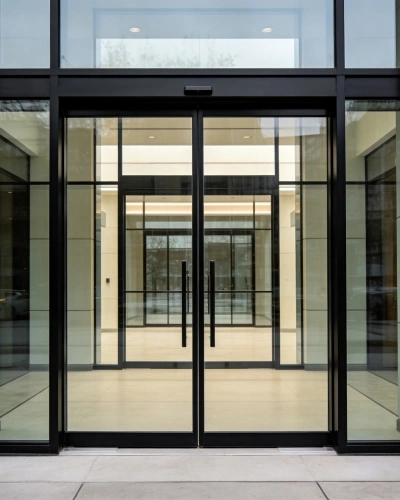

Automatic Swing Doors are widely used in shopping centres, supermarkets, hotels, office buildings, hospitals, schools, airports, railway stations, factories, warehouses, logistics centres, and residential communities
